APlusLift 10,000LB 2-Post Floor Plate Heavy Duty Car Lift with 3 Year Warranty - HW-10KBP-A

APlusLift 10,000LB 2-Post Floor Plate Heavy Duty Car Lift with 3 Year Warranty - HW-10KBP-A

$ 945

50% OFF

Specifications

ModelHW-10KBP-A (This Model)HW-10KOH-A for Comparison
ManualHW-10KBP-A ManualHW-10KOH-A Manual
StyleFloor PlateOverhead
Lock ReleaseDouble Point ReleaseDouble Point Release
Warranty3 Years (36 Months)3 Years (36 Months)
Lifting Capacity10,000 LB10,000 LB
Overall Height113 5/8"143 3/16"
Overall Width134 5/16"134 5/16"
Maximum Lift height with Truck Adapters81"81"
Maximum Lift height without Truck Adapters75"75"
Minimum Height of Adjustable Pads from Ground4"4"
Drive Through Width (Carriage to Carriage)100"100"
Column to Column Width109"109"
Column Cross Section11"L x 7"W11"L x 7"W
Floor Plate Cross Section10 5/8"W x 1 7/8"HN/A
Driving ModeDual hydraulic cylinders, chain driveDual hydraulic cylinders, chain drive
Motor220V Single Phase 3HP 10A (recommend a 30A breaker)220V Single Phase 3HP 10A (recommend a 30A breaker)
Time to full rise50 seconds50 seconds
Hydraulic Oil3-5 gallons AW32/AW46 (Not Included)3-5 gallons AW32/AW46 (Not Included)
Shipping Weight1370 LB1470 LB
Shipping package size113"L x 22"W x 40"H113"L x 22"W x 40"H
Concrete Requirement6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles 9000LB and below)
Parts Included
  • 4 pieces of adjustable screw pads
  • 4 pieces of 4" tall truck adapters (height extensions)
  • 10 anchor bolts
  • 10 shims

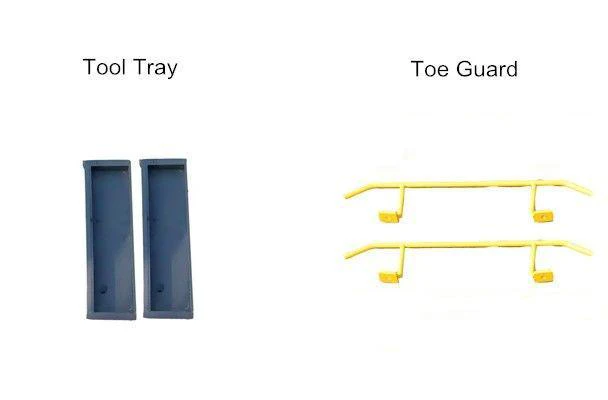

  • 2 tool trays
  • 2 toe guards
Optional Parts2 3/4" and 6" Tall Truck Adapters
Arm AssemblyCombo (Symmetrical and Asymmetrical) Arm Assembly
Front ArmsStraight Front 3 Stage reach from 22 7/8" to 42 5/8"
Back ArmsStraight Rear 2 Stage reach from 33 5/8" to 52 7/8"
Column Steel Thickness13/64"
Carriage Steel Thickness15/64"
Carriage Yoke Thickness9/16"
Arm Steel Thickness15/64"
Base Plate Steel Thickness5/8"
APlusLift 10,000LB 2-Post Floor Plate Heavy Duty Car Lift with 3 Year Warranty - HW-10KBP-A
