APlusLift 14,000LB 2-Post Overhead Single Release Direct Drive Car Lift with A 3-Year Warranty - AP-14SR

APlusLift 14,000LB 2-Post Overhead Single Release Direct Drive Car Lift with A 3-Year Warranty - AP-14SR

$ 2,400

50% OFF

All 2-Post Car Lifts

  • The lift is expected to be delivered in about 60-90 days starting from the day the lift is ordered. We require a 10% down (non-refundable) and the remaining balance paid before we ship it to your location. Please email us if you are interested.

  • Industry leading 3 YEAR WARRANTY (a $499 value!)

  • Single Point Safety Lock Release System

  • Two Set of 2 3/4" Tall and 5 1/2" Tall Truck Adapters Included; 6'7" Lift Height Maximum with Truck Adapters

  • CE Certified Lift Structure and Hydraulic System - Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity

  • All Robot Welded Structure with Durable Powder Coated Finish

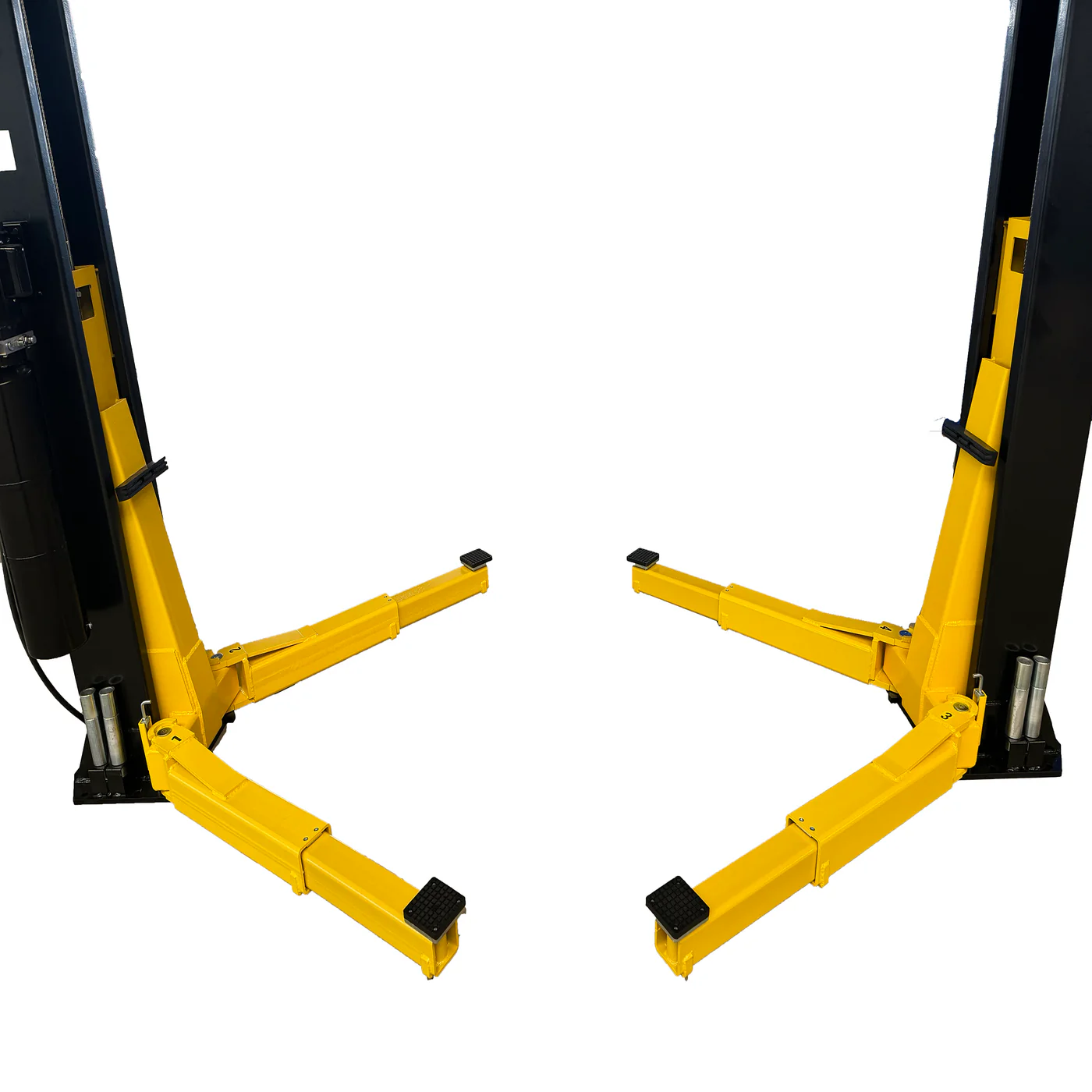

APlusLift AP-14SR is a 14000LB single point release overhead car lift (auto hoist) built with quality materials and good workmanship.

We are proud to offer an industry leading 3 year warranty for all parts (a $499 value)! We have all replacement and optional parts available for our lifts.

Free shipping to lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift; expense not reimbursed. See shipping policy below for limited access/remote/high-cost areas.

Warehouse Pickup Locations (Contact Us for $300 Discount): Charlotte (NC), Chicago (IL), Dallas (TX), Jacksonville (FL), Kansas City (MO), Las Vegas (NV), Los Angeles (CA), Mobile (AL), Ontario (OH), Portland (OR), Tacoma (WA), Virginia Beach (VA), and Watsontown (PA).

Frequently Asked Product, Order, and Shipping Questions and Technical Questions

Specifications

ModelAP-14SR (This Model)HW-12HD (for Comparison)
ManualAP-14SR ManualHW-12HD Manual
StyleOverheadOverhead
Lock ReleaseSingle Point ReleaseSingle Point Release
Warranty3 Years (36 Months)3 Years (36 Months)
Lifting Capacity14,000 LB12,000 LB
Overall Height165 11/32"160"
Overall Width142 1/8"137 13/32"
Maximum Lift height with Truck Adapters79 19/32"77 15/16"
Maximum Lift height without Truck Adapters74 3/32"72 7/16"
Minimum Height of Adjustable Pads from Ground6 11/16"5 1/8"
Drive Through Width (Carriage to Carriage)104 1/8"99 23/32"
Column to Column Width114 11/16"110 1/32"
Column Cross Section12 7/32"L x 9 27/32"W12 7/32"L x 9 27/32"W
Driving ModeDual hydraulic cylinders, direct driveDual hydraulic cylinders, direct drive
Motor220V Single Phase 3HP (recommend a 30A breaker)220V Single Phase 3HP (recommend a 30A breaker)
Hydraulic Oil3.2-5 gallons AW32/AW46 (Not Included)3.2-5 gallons AW32/AW46 (Not Included)
Time to full rise75 seconds75 seconds
Shipping Weight2300 LB2100LB
Shipping package size150"L x 33"W x 21"H146"L x 33"W x 21"H
Arm AssemblySymmetrical Arm AssemblySymmetrical Arm Assembly
Front ArmsStraight Front 2 stages reach from 32 5/32" to 49 7/32"2 stages reach from 32 5/32" to 49 7/32"
Back ArmsStraight Rear 2 stages reach from 32 5/32" to 49 7/32"2 stages reach from 32 5/32" to 49 7/32"
Column Steel Thickness1/4"1/4"
Carriage Steel Thickness1/4"1/4"
Carriage Yoke Thickness13/32"13/32"
Arm Steel Thickness5/16"5/16"
Base Plate Steel Thickness5/8"5/8"
Truck Adapters (Height Extensions)Two Sets: 4pcs: 5 1/2" Tall 4pcs: 2 3/4" TallTwo Sets: 4pcs: 5 1/2" Tall 4pcs: 2 3/4" Tall
Other Parts Included
  • 10 anchor bolts
  • 10 shims
Optional Parts2 3/4" and 6" Tall Truck Adapters
Concrete Requirement6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles 9000LB and below)

Features

  • Direct drive mode
  • Durable hydraulic system
  • Easy to operate and maintain
  • Single point safety lock release
  • Double Seal Rings Protecting PU Material
  • Carriage and Coloumn Material Q235B Steel
  • Lifting operation by pressing "UP" button on motor
  • Manual lowering operation by pressing lever
  • Relief valve built in power pump to prevent overloading
  • Automatic arm lock restraints
  • Relief valve built in power pump to prevent overloading
  • Door guards protection rubber
  • Up-limit switch to protect cylinders working stroke used in safe length scope
  • Heavy duty 3/8" diameter cable and 3" pulley that reduce high stress on synchronization process and increase cable life
  • Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
